Best External GPU Docks for Mini PC in 2026
OCuLink delivers full PCIe 4.0 ×4 bandwidth to an external GPU — 30–40% faster than USB4 for gaming. Three docks compared: pre-built GPU included, bring-your-own-GPU, and brand-specific options.
Check compatibility before buying. OCuLink eGPU docks require a physical OCuLink port on your mini PC. Not all mini PCs have one — verify your model’s spec sheet first. The connector looks like a small 4-lane SATA-style plug, usually on the rear panel. Mini PCs confirmed with OCuLink: Peladn HO5, BOSGAME M4 Plus, Minisforum UM880/UM890, GMKtec K6/EVO-X1, ACEMAGIC Retro X5. Mini PCs without OCuLink (USB4 only): Beelink SER9 Pro AI, GEEKOM A9 Max, GMKtec EVO-X2.
| Dock | GPU Included | Interface | PSU | Best For |
|---|---|---|---|---|
| GMKtec AD-GP1 | RX 7600M XT 8GB ✓ | OCuLink + USB4 | Integrated | Plug-and-play gaming |
| Minisforum DEG1 | None — bring your own | OCuLink (PCIe 4.0 ×4) | External ATX/SFX | Maximum GPU choice |
| Beelink eGPU Dock | None — bring your own | PCIe ×16 | Built-in 600W ✓ | Beelink GTi users |

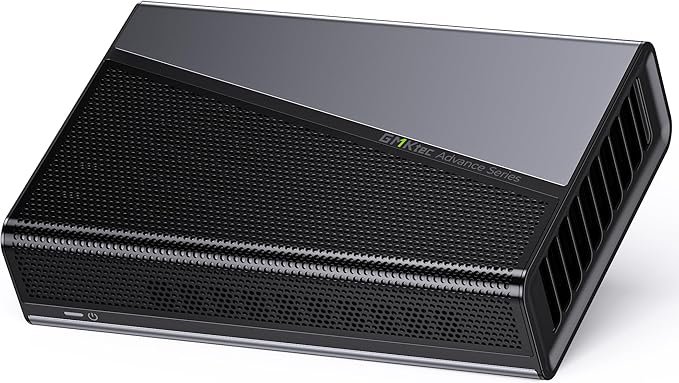

The only dock on this list that ships with a GPU already installed — an AMD Radeon RX 7600M XT (8GB GDDR6). Plug it into your mini PC’s OCuLink or USB4 port and you have a fully functional external GPU without sourcing a separate card or power supply. At 163 × 110 × 40 mm, it’s compact enough to sit beside a mini PC. Dual OCuLink + USB4 connectivity covers most mini PC models. Quad display output via 2× HDMI 2.1 and 2× DisplayPort 2.0 — supports four 4K screens simultaneously. The RX 7600M XT is a mid-range GPU: excellent for 1080p gaming, capable at 1440p medium settings. The GPU is not user-replaceable — this is a fixed-spec device, not an upgrade platform.

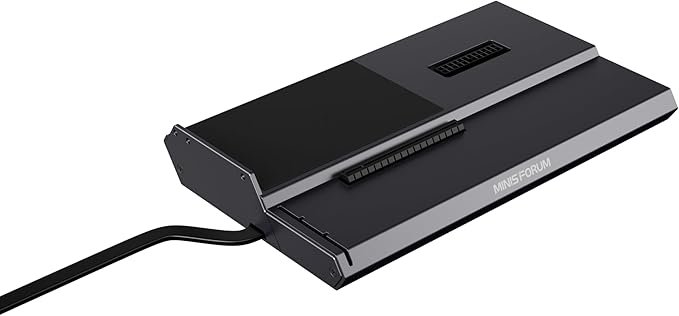

The most flexible option at the lowest enclosure cost — starting at $99, the DEG1 is an open-frame dock that accepts virtually any full-size desktop GPU including the RTX 4090 and RX 7900 XTX. OCuLink PCIe 4.0 ×4 at 64 Gbps delivers the maximum bandwidth available from any eGPU connection. The open-air frame accommodates large triple-fan cards without airflow restrictions. A signal amplifier chip stabilizes the PCIe connection over the OCuLink cable. The major requirement: you must supply both a compatible GPU and a separate ATX or SFX power supply — this is an enclosure only, not a complete solution. For users who already own a desktop GPU or want to choose their own, this is the most capable and cost-effective chassis available.

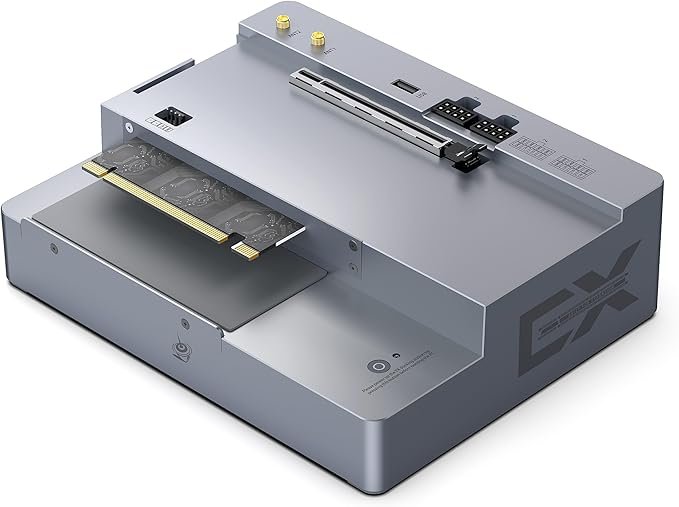

A purpose-built eGPU dock designed specifically for Beelink GTi14 (155H/185H) and GTi12 mini PCs — it uses a proprietary connector, not OCuLink or USB4. The advantage over the other two docks is the integrated 600W PSU (no separate power supply needed) and PCIe ×16 slot (maximum GPU bandwidth). It also includes an M.2 SSD slot and dual Wi-Fi antenna ports for connectivity expansion. Supports RTX 4090 and RX 7900 XTX. If you own a compatible Beelink GTi model, this is the cleanest solution — single cable, built-in power, full PCIe ×16 lanes. For any other mini PC brand or model, this dock will not work.
Find a mini PC with OCuLink for your eGPU
All our mini PC rankings are updated March 2026 — filter by OCuLink support in our buying guides.
